PYK103 Industrial smart pressure switch
Pressure preset switching point and delay switching output

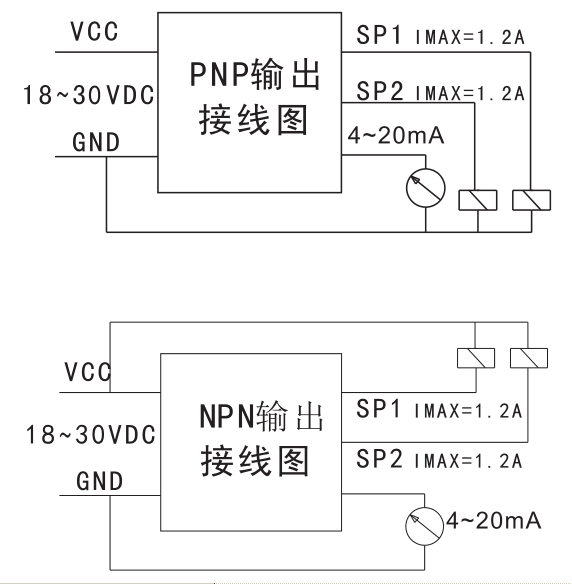

兩路開關(guān)量輸出(NPN/PNP),帶載能力1.2A
Control points can be set at random on site between zero and full point
4-20mA模擬量可選
Return value free setting
顯示窗口可330°旋轉(zhuǎn)

Overview

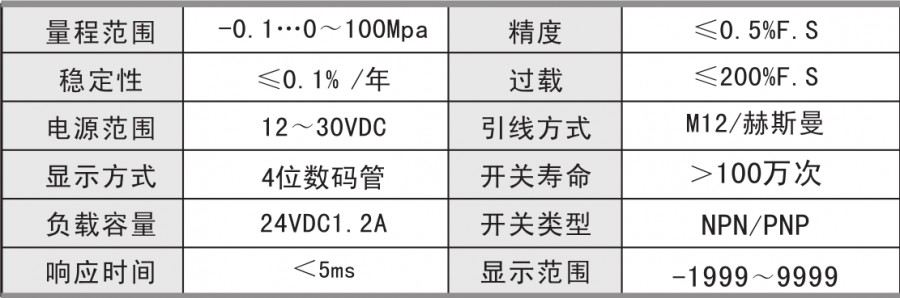

Specification

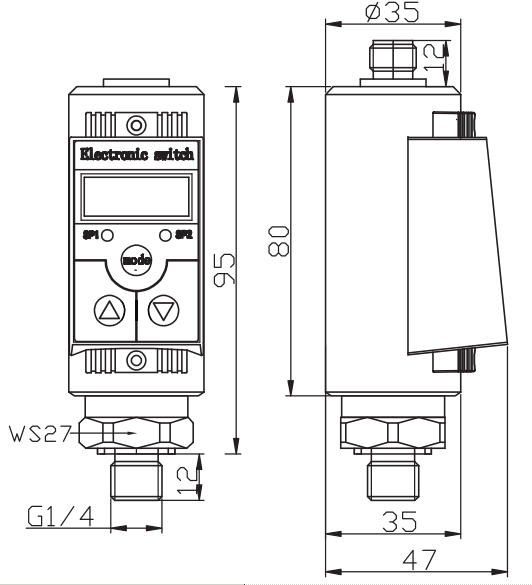

Structure

Model Selection


The PYK103 smart digital pressure switch is an intelligent digital pressure measurement and control product that integrates pressure measurement, display, output, and control. Stainless steel joint, diffused Silicon pressure core body, whole digital circuit board, display intuitive, simple operation, safe and reliable, switch point set on site. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries to measure and control the pressure of fluid media.
